Panel lighting 6w 12w 18w 24w 30w diamond led panel light
$0.00
$0.00
2323
White frame die-casting AL surface mounted led panel light 18w skd
White frame die-casting AL surface mounted led panel light 18w skd Product Description
| Model Number | Power | SIZE | Voltage | Color Temperature | Lumens | |
| XJ-MZ-006-RD | 6W | Φ120 | ||||
| Surface Mounted Round LED Panel Light | XJ-MZ-012-RD | 12W | Φ170 | AC85~265V | 2700-3200K 6000-6500K | ≥80LM/W |
| XJ-MZ-018-RD | 18W | Φ223 | ||||
| XJ-MZ-024-RD | 24W | Φ300 | ||||
| XJ-MZ-030-RD | 30W | Φ300 |
| Model Number | Power | SIZE | Voltage | Color Temperature | Lumens | |
| XJ-MZ-006-SQ | 6W | 121*121 | ||||
| Surface Mounted Square LED Panel Light | XJ-MZ-012-SQ | 12W | 172*172 | AC85~265V | 2700-3200K 6000-6500K | ≥80LM/W |
| XJ-MZ-018-SQ | 18W | 224*224 | ||||
| XJ-MZ-024-SQ | 24W | 300*300 | ||||
| XJ-MZ-030-SQ | 30W | 300*300 |
White frame die-casting AL surface mounted led panel light 18w skd Quick Details
Light Source:LED | Warranty(Year):2-Year |
Color Temperature(CCT):6000K (Daylight Alert), 2700-6500K | Lamp Luminous Efficiency(lm/w):80, 80 |
Color Rendering Index(Ra):80 | Support Dimmer:Yes |
| Lighting solutions service:Project Installation | Application:Home Office |
| Design Style:Modern | Lifespan (hours):50000 |
| Working Time (hours):30000 | Input Voltage(V):AC85-265V |
| Lamp Luminous Flux(lm):1440 | CRI (Ra>):80 |
Working Temperature(℃):-20 - 50 | Working Lifetime(Hour):50000 |
Lamp Body Material:Aluminum | Place of Origin:Guangdong, China |
IP Rating:Ip44 | Model Number: XJ-MZ-018 |
White frame die-casting AL surface mounted led panel light 18w skd Supply Ability
Supply Ability
1500000 Piece/Pieces per Month led panel light surface mounted
Introduction of White frame die-casting AL surface mounted led panel light 18w skd

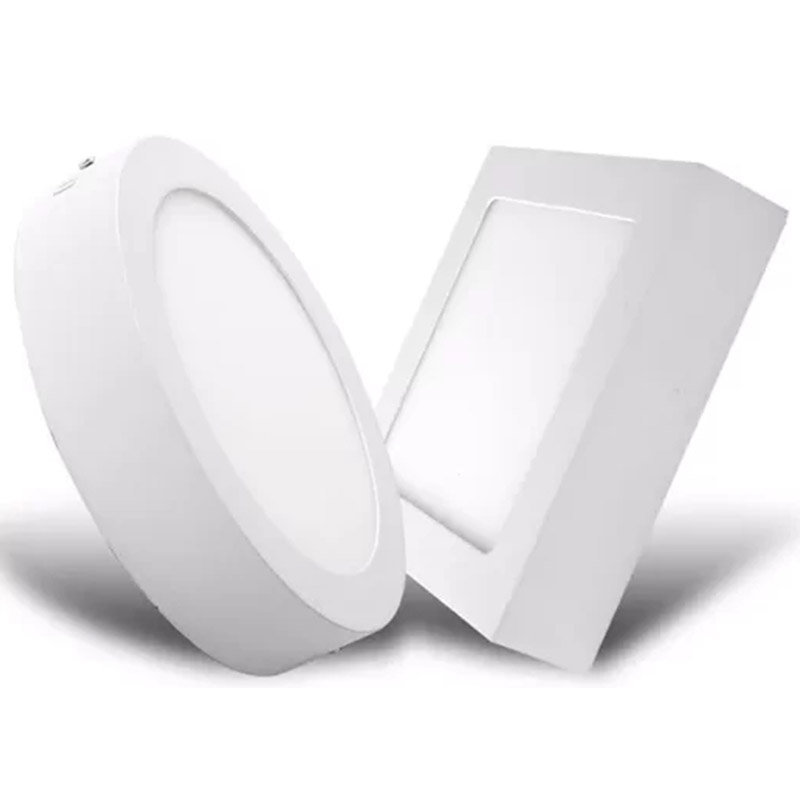

White frame die-casting AL surface mounted led panel light 18w skd is a kind of surface mounted led panel light Jiushihao surface mounted led panel light exporter sells White frame die-casting AL surface mounted led panel light 18w skd has two form factors Optional, one is round and one is square.
Whether it is round or square, the surface mounted led panel light adopts the minimalist design principle, the appearance is simple and fashionable, full of modernity, and can be easily integrated into a variety of home decoration styles;
White frame die-casting AL surface mounted led panel light 18w skd color temperature below 6500k, voltage 85V-265V optional;
The surface mounted led panel ligh is made of high-quality led light source, the light is very delicate, as comfortable as natural light, no glare and no video flash;
The surface mounted led panel light produced by Jiu Shihao surface mounted led panel light company has a long service life and can be used for up to 50,000 hours.
Advantages of surface mounted led panel light
The surface mounted led panel light has good sealing performance, which solves the problem that mosquitoes are easy to invade in the gap of the lamp, and keeps the interior of the lamp body clean and easy to clean;
White frame die-casting AL surface mounted led panel light 18w skd adopts high light transmission lampshade, the light is delicate and comfortable, and the eyes are not tired for a long time;
The surface mounted led panel light body is made of aluminum, giving the lamp strong vitality and long service life;
Surface mounted led panel light installation
The installation of surface mounted led panel light requires a conversion frame.
The first is to fix it on the cement ceiling with screws, then connect the LED driver, and finally press firmly to embed the panel light into the conversion frame.
White frame die-casting AL surface mounted led panel light 18w skd use precautions:
1. Before use, it is necessary to confirm whether the White frame die-casting AL surface mounted led panel light 18w skd is damaged during transportation.
2. Keep the packaging bag away from children to prevent children from playing with and causing suffocation! To prevent White frame die-casting AL surface mounted led panel light 18w skd small accessories, causing children to accidentally eat.
3. Keep children away from White frame die-casting AL surface mounted led panel light 18w skd, and don't let children touch live equipment.
4. Do not cover any items on the White frame die-casting AL surface mounted led panel light 18w skd, and keep the product away from open flames or high temperature objects.
5. Non-professionals are not allowed to disassemble and repair. Our company has the right to not provide replacement and warranty services for the White frame die-casting AL surface mounted led panel light 18w skd that has been disassembled and repaired without permission.
6. Before cleaning the White frame die-casting AL surface mounted led panel light 18w skd, please turn off the power and clean it with a clean rag, do not use chemical or corrosive things to clean it
