Frame led panel light

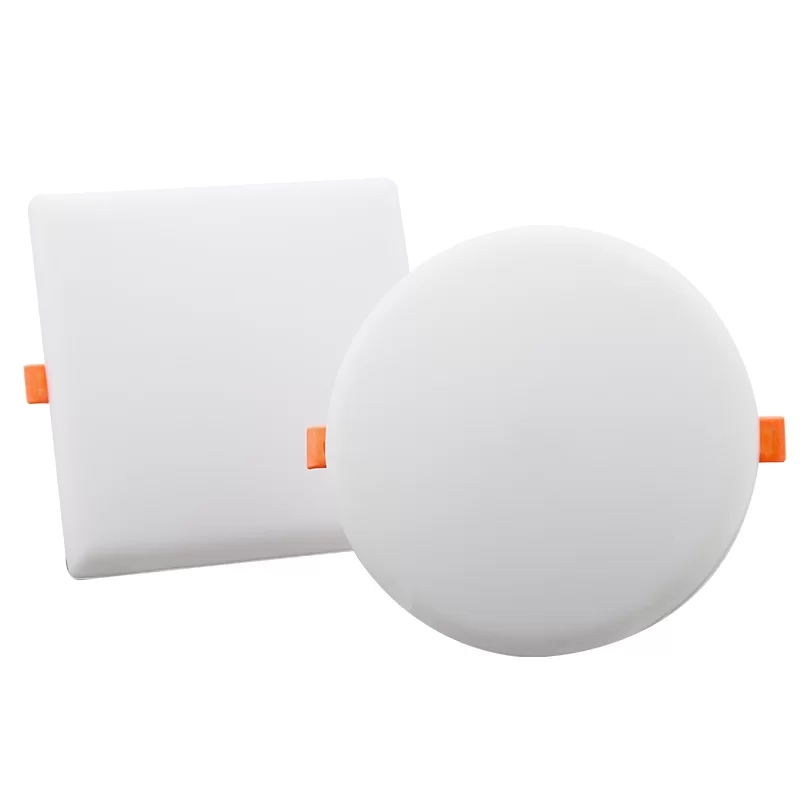

·New Design Rimless Backlit Led Slim Downlight Square And Round.

·High efficiency constant currency driver, making the products can work under unstable voltage.

·Instant start, no flickering, no humming.

·Environmental friendly, no mercury and lead-free.Energy saving,green lamp.

·Long Lifespan with CE ROHS.

Place of use

LED recessed panel lights are perfect lighting solutions for indoor applications like office, classroom, showroom, lobbies, mall, hospitals and reception areas.

Product advantages

Lamp frame

Durable airtight aluminum body with etched white polycarbonate diffuser lens for low glare

LED Characteristics

This general application light fixture features a 9 watt LED module that maintains uniform intensity producing up to 680 lumens; with a typical CRI of 82.Available in 2700°K, 3000°K, 3500°K 4000°K or 6000°K colour temperature.

Dimming

100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers.

LED Driver

Extruded aluminum hardwire box with 210mA dimmable class II electronic LED driver with 100-277 V AC input.

Introduction to Frameless panel lamp

The frameless panel lamp's frameless design makes the whole lamp more beautiful, and also reduces the blind spot of lighting, and the whole room can be illuminated by lighting the lamp;

Frameless panel lamp has built-in high-quality led light source, the light is natural and delicate, soft and comfortable, and very friendly to the eyes; in addition, the light does not contain video flashes, which can effectively reduce eye damage and prevent eye fatigue for a long time;

Aluminum lamp body, better heat dissipation and longer service life.

Frameless panel lamp selection

1. Frameless panel lamp chips, under normal circumstances, the quality of first-tier brands such as CREE, Osra, HP, etc. must be better than second-tier ones. Currently used in Frameless panel lamps are 3528, 3020, 3014 and other specifications. These specifications are mainly due to the different heat dissipation methods and sizes of the chips. Chips of the same brand have different manufacturers and different quality.

2. Frameless panel lamp profile and structure

Basically Frameless panel lamp material is divided into two profiles: full plastic, half plastic and half aluminum

1) All-plastic Frameless panel lamp: In the early days, all-plastic lamps were used for fluorescent lamps. Because the main lamp used an isolated power supply, in order to avoid electric shock problems, all-plastic lamps were used. Inside is the grass Xiang tube LED.

2) Half-plastic and half-aluminum Frameless panel lamp: The LED fluorescent lamps on the market are basically made of half plastic and half aluminum alloy. Aluminum alloy is used for the half that does not need light transmission but needs to be heated. The light half is made of plastic. This structure can improve the heat dissipation problem of the Frameless panel lamp.

3.Frameless panel lamp fixed strong head:

At present, there are many connection methods for Frameless panel lamps on the market, including aluminum skin, P°C material, and aluminum skin plus PC material.

According to the fixing method, the two ends of the lamp are fixed with glue. There are also two tubes fixed to the lamp tube with screws.

In terms of safety and environmental protection, the method of fixing with screws is widely adopted by consumers.

Frameless panel lamp parameter

Color temperature: 2700°K, 3000°K, 3500°K, 4000°K or 6000°K

Dimmable: Yes

Dimmer compatible: Yes, compatible with ELV dimmers

Input voltage: 100-277 V AC

Driver Type: 210mA Dimmable Class II Electronic LED Driver

Details of Frameless panel lamp

The frameless panel light is a new type of indoor lighting fixture with a beautiful and simple design. The light source is LED, using a high-transmittance mask, the light is uniform, the light is soft and comfortable, and it is bright.

Frameless panel lamp is produced by Xinjie Lighting, a professional LED panel light manufacturer, and it is also a professional Frameless panel lamp exporter. It adopts embedded free opening design, and adjusts the opening size by adjusting the position of the buckle, which increases the opening and closing to a greater extent. Hole range, so you no longer have to worry about choosing the size of the opening of the lamp.

The selected masks of Xinjie Lighting are used, with high light transmittance, and the frameless panel lamp is soft and not dazzling, bringing a comfortable visual experience and giving more care to the family.

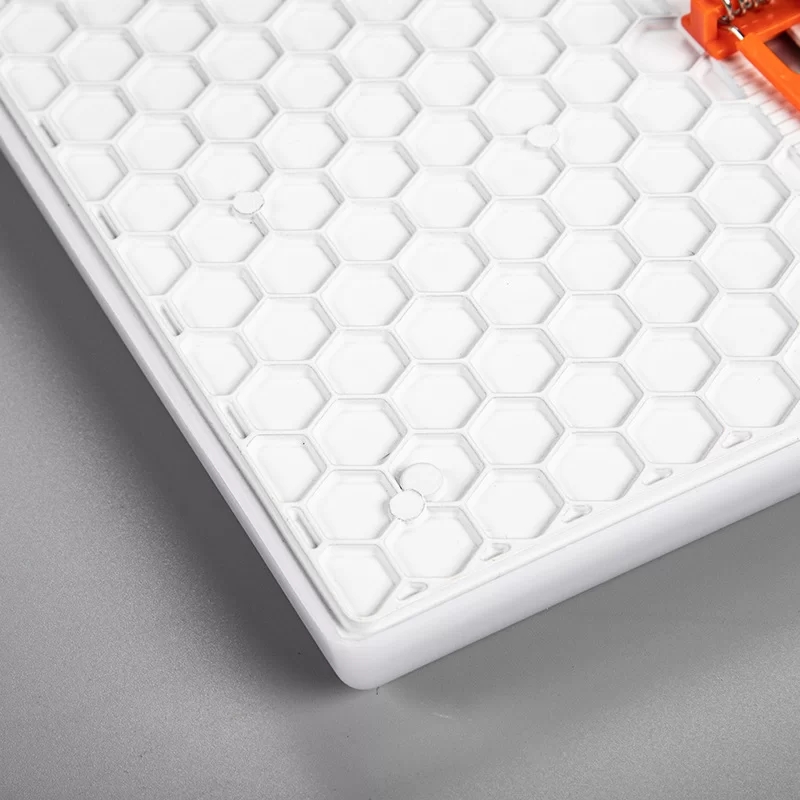

The aluminum back plate design can improve the heat dissipation efficiency of the Frameless panel lamp and effectively prolong the service life of the lamp body.

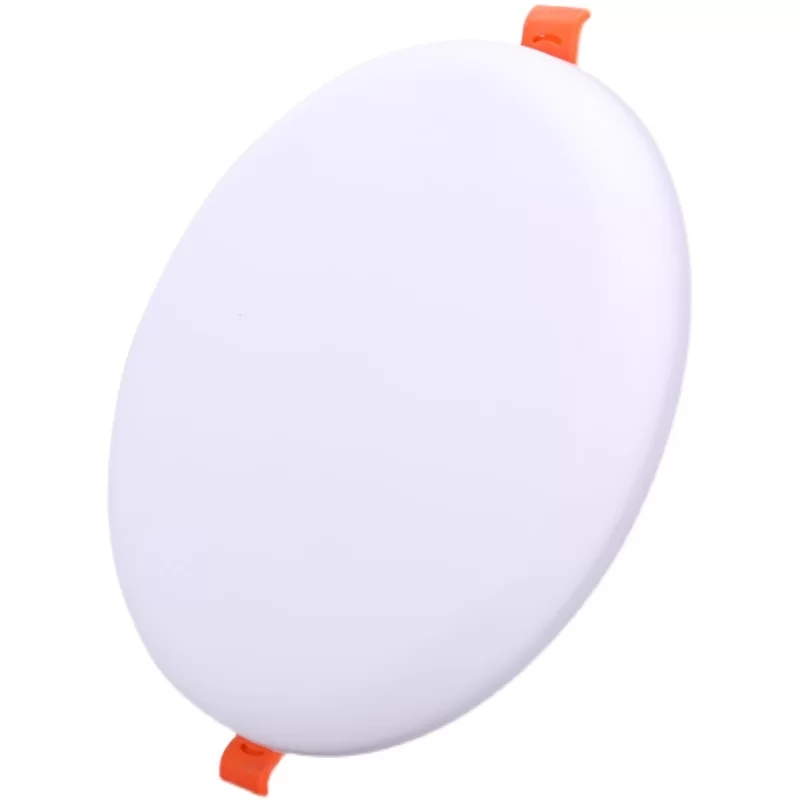

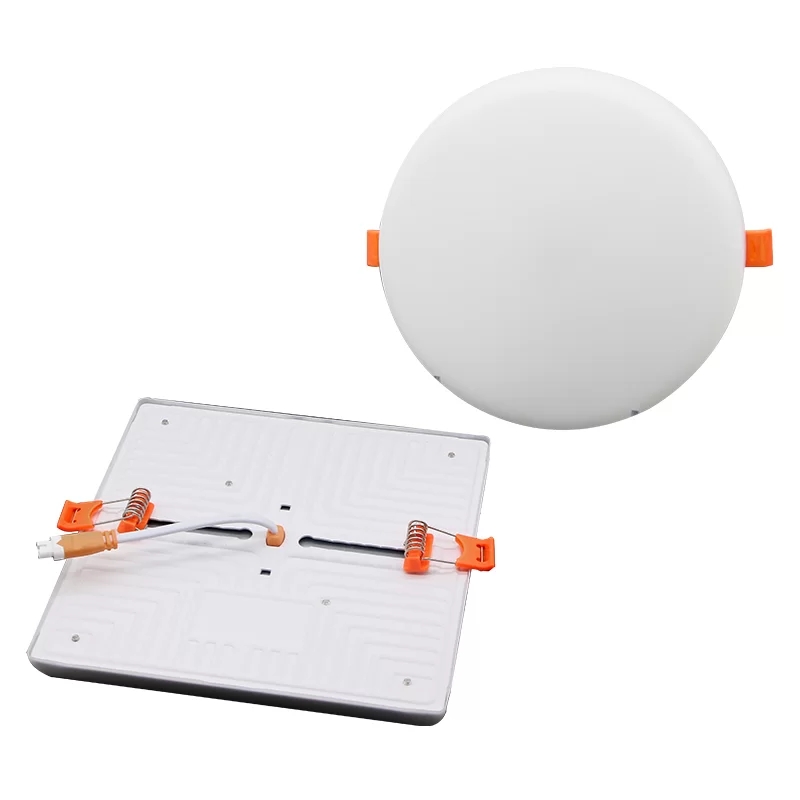

The edge of the frameless panel lamp body is equipped with a strong spring buckle, which is more firmly installed, anti-corrosion and rust-proof, and will not be deformed after long-term use.

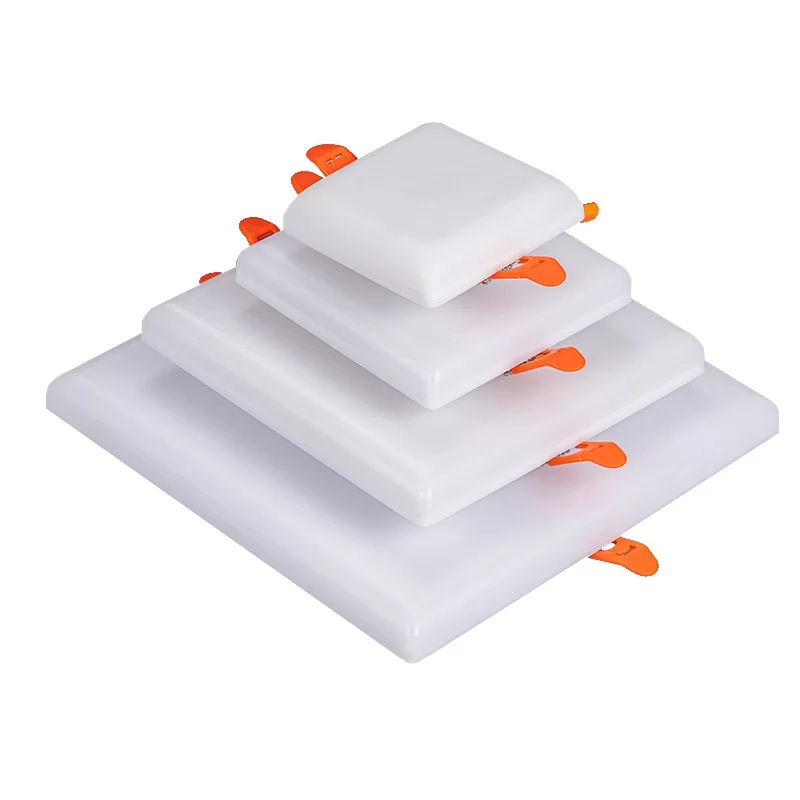

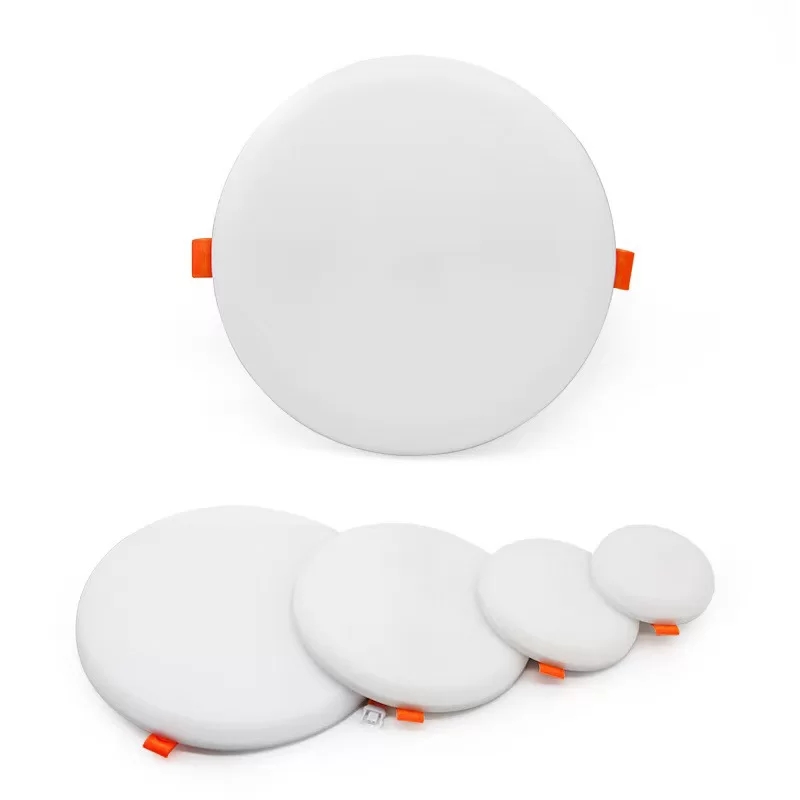

Four specifications are available to meet the lighting needs of various occasions, hotels, supermarkets, and homes.

Three kinds of light colors can be adjusted, Frameless panel lamp, with 3000K warm light, 4000K neutral light and 6500K white light adjustable, it can be dimmed anytime and anywhere, and easily create a meeting/cinema atmosphere.

The installation routine of Frameless panel lamp is divided into: hanging wire type, ceiling type, embedded, today we are going to talk about embedded:

Embedded: As the name suggests, it is an installation method that embeds the Frameless panel lamp into the ceiling, so that the lamp and the ceiling are integrated.

Frameless panel lamp embedded installation steps:

①First, use a tool to open the ceiling according to the size of the corresponding Frameless panel lamp. Please be sure to open the hole according to the size of the Frameless panel lamp. Otherwise, the installation of the Frameless panel lamp will be unsuccessful.

② Correctly follow the Frameless panel lamp instruction manual to link the wires and the lamp terminals. The installation must be operated by a professional electrician, and remember to turn off the power.

③Reset the spring clips on both sides of the Frameless panel lamp and install it into the ceiling after the opening, to determine the conformity of the size of the lamp and the opening.

④ After confirming that the size of the opening is appropriate and the wiring is correct, put down the spring buckles on both sides of the Frameless panel lamp, and confirm the stability of the lamp after lowering the spring buckles.

⑤Turn on the power and test the lamp to see if the Frameless panel lamp can be turned on.
